HOME > SAMURAI > Technical Information

SAMURAI

Technical Information

Please visit SAMURAI collaboration page to get the latest information.

Magnetic field

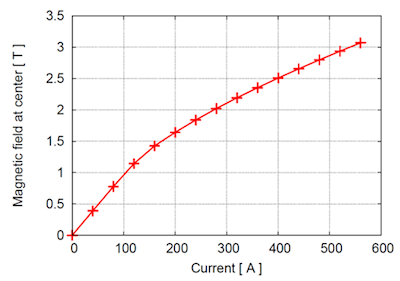

Excitation curve

Current (A) Ramping speed (A/sec) 0~100 0.04 100~120 0.05 120~140 0.06 140~160 0.07 160~180 0.08 180~563(max) 0.09

Field map

The field map is calculated with OPERA-3d/TOSCA.

The files are available here.



Detectors

Detectors at upstream of the magnet

• Beam Trigger 1,2 (SBT1, SBT2) (plastic scintillator with PMT): beam phase space
• Beam Drift Chamber 1,2 (BDC1, BDC2) : beam phase space [PDF]
• Ion Chamber for Beam (ICB) : charge of beam [PDF]
• Forward Drift Chamber 1 (FDC1) : scattering angle of fragments [PDF]

Detectors  at downstream of the magnet

• Forward Drift Chamber 2 (FDC2) : rigidity analysis for fragments [PDF]
• Ion Chamber for Fragments (ICF) : charge of fragments [PDF]
• Hodoscopes for Fragment/Proton (HODF/HODP) : velocity & charge of fragments [PDF]
• Proton Drift Chamber 1,2 (PDC1, PDC2) : momentum analysis for proton [PDF]
• Total Internal Reflection Cherenkov (TIRC) : velocity of fragments [PDF]
• Total Energy Detector (TED) : velocity of fragments [PDF]

NEBULA : neutron detector [PDF]

TPC (Time Projection Chamber) : multiple charged particle measurement
