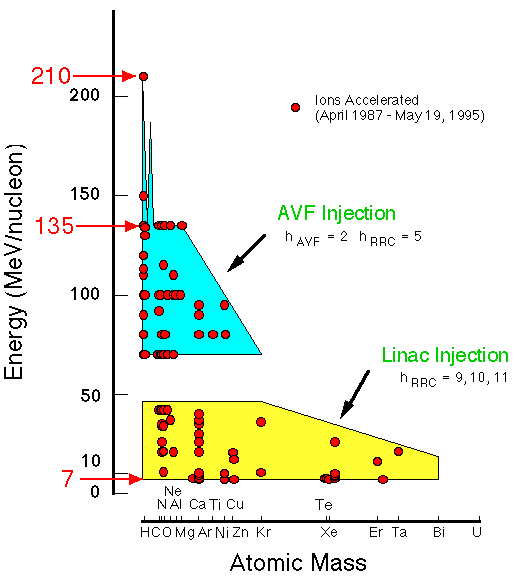

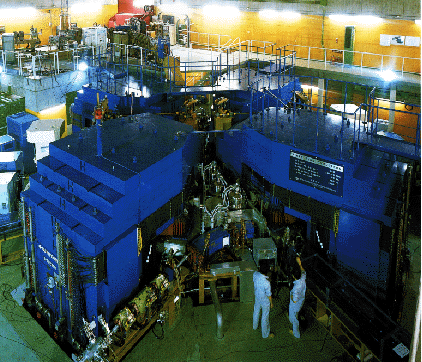

The radio frequency is coasely changed over the range of 18-45 MHz with movable-boxed accommodated inside the resonators. An acceleration voltage of as much as 275 kV is generated at a frequency of 32.6 MHz, which corresponds to the top enegy of 135 MeV/nucleon for light ions. The acceleration harmonics of 5 is used for the AVF injection, while 9,10, and 11 for the RILAC injection. The RILAC works at the same frequency as the RRC, while AVF at half ot the RRC frequency. The extraction radius is desinged to be four times the injection radius, so that the final velocity increased by four times an incident velocity.
Injection
type 45 deg. against the medium plane
Main Magnet
K-value 540 MeV
Sector Magnets 4 sector
Sector Angle 50 deg.
Pole Gap 8 cm
Max. Flux Density 1.67 Tesla
Injection Radius 0.89 m on the average
Extraction Radius 3.56 m on the average
Trim Coils 26 pairs per sector magnet
Total Weight 2,100 tons
Accelerator System
RF Amp. final tube RS2042SK tetrode (Siemens)
RF output power 300KW(CW) for each Amp.
Resonator Lambda/2 type, two sets
Dee angle 23.5 deg
Freqeuncy Range 18-45 MHz
Max. Dee Voltae 275 KV
Harmonic No. 9,10,11 for RILAC injection,
5 for AVF injection
RF final tube RS2042SK tetrode (Siemens)
RF output power 300KW(CW) for each amp
Dimensions
Diameter 12.6 m
Hight 6.0 m
