PHENIX MMN coil - Fabrication and Test

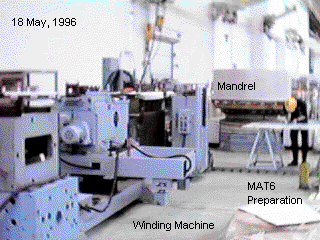

• Winding Machine and Mandrel for the PHENIX MMN coil

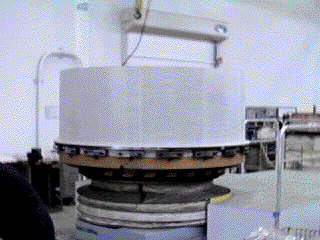

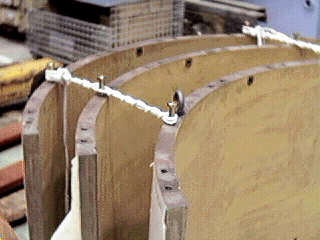

• Mandrel(closed up)

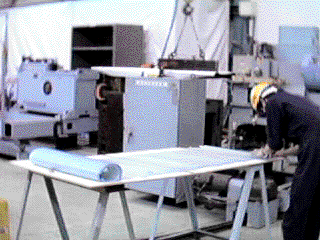

• Preparating the MAT6 Insulation Tapes

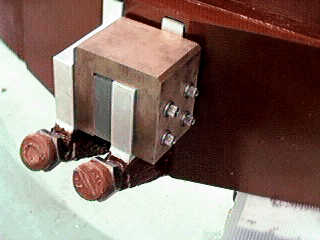

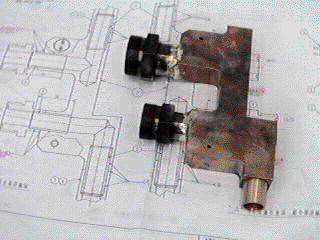

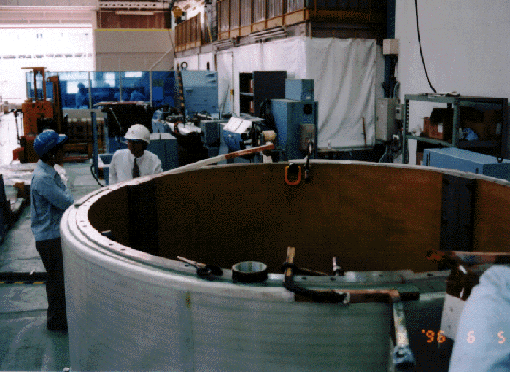

• Transition between the inner layer and outer layer of the #2 coil 96/05/31

Attendances of the inspection: Bob Yamamoto (LLNL), Takashi Ichihara(RIKEN), Naohito Saito(RIKEN) Shintaro Fukumoto(Melco), Kazu Kuno (Melco), Hirokazu Hata (Melco), etc.

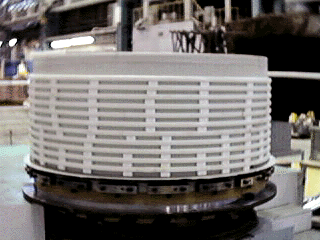

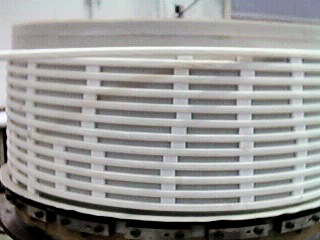

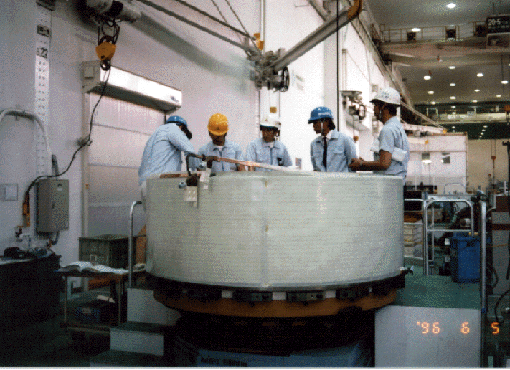

• North Coil #2 under fabrication
• North Coil #2 under fabrication
• North Coil #2 under fabrication
• North Coil #2 under fabrication

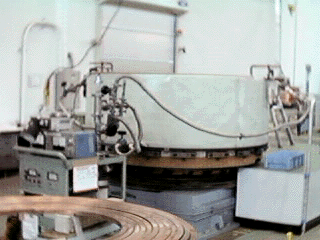

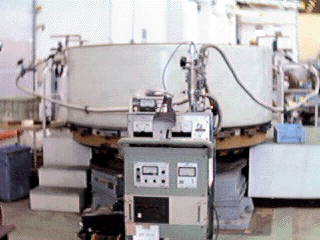

• Inspection with the He Leak Detector -1
• Inspection with the He Leak Detector -2

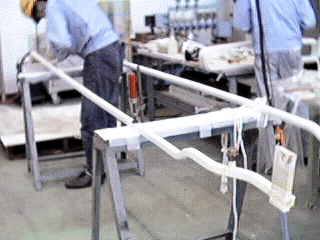

• Lead Insuration Process

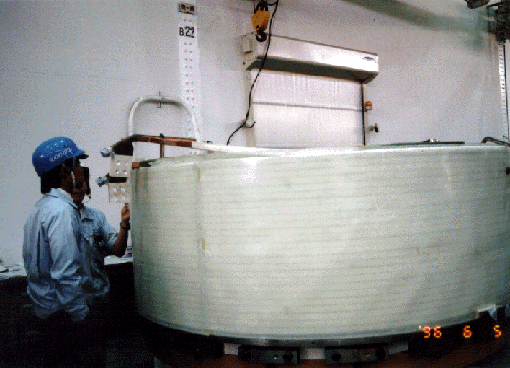

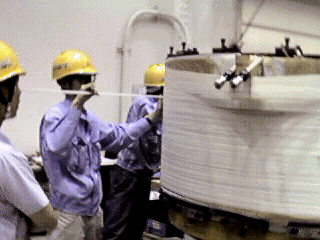

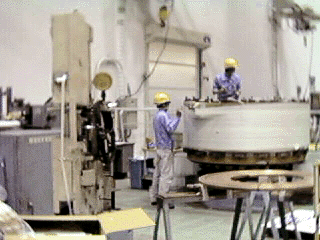

• winding glass tape with tension -1
• winding glass tape with tension -2

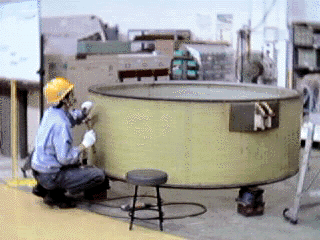

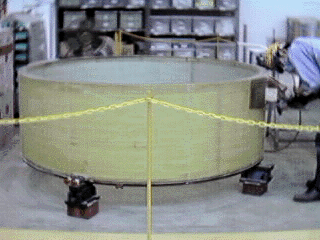

• removing the pressing zigs from the coil #1 after removing the coil from the manderel
• After removing the pressing zigs

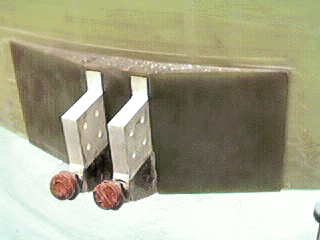

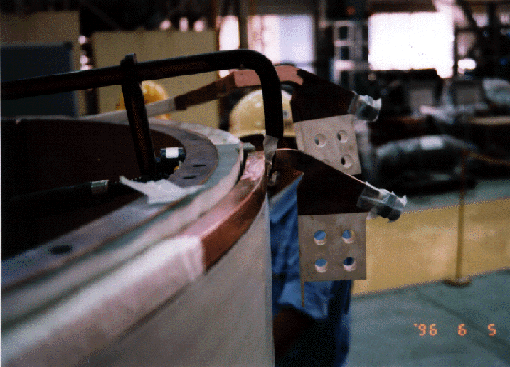

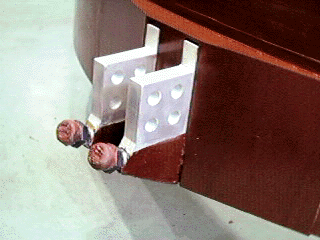

• Close up photo of the Bus Flag

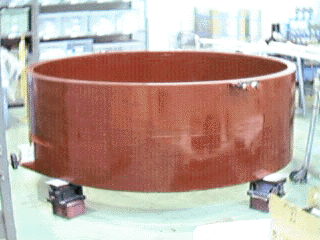

• Coil #2 completed

• 1
• 2
• 3

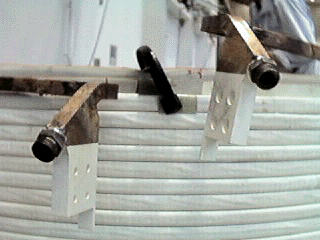

• Bus Flag Close-up
• Busflag Close-up (2)
• Bus Flag

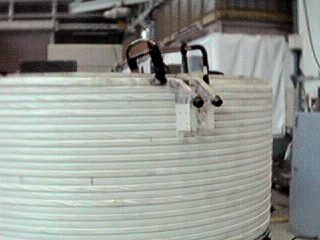

• After curing the coil #1.
• befor insulating to the ground
• Mandrel

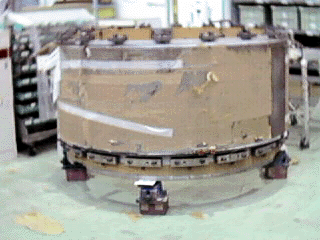

Coil #1 completed on 25 June 1996

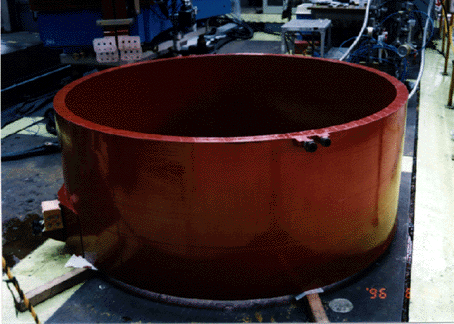

• Fabrication of the MMN coil #1 completed.

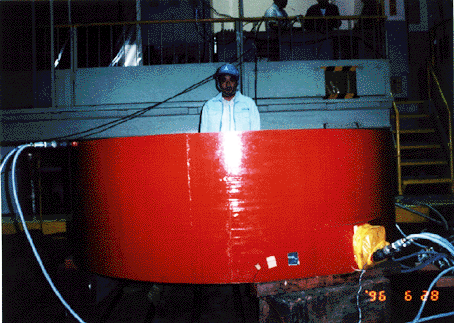

Witness on 28 June 1996 by RIKEN (T.Ichihara, Y. Goto)

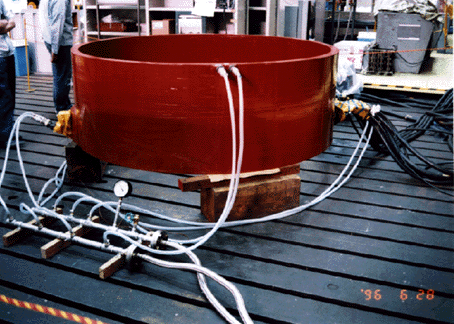

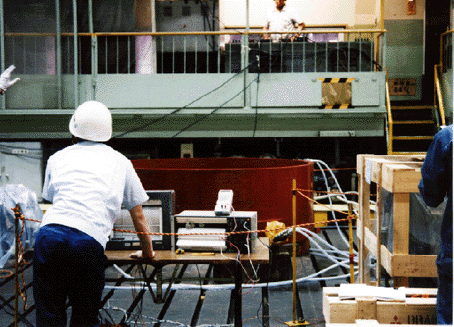

• Load test with 0-2500 A current and water(1)
• Load test with 0-2500 A current and water(2)
• Load test with 0-2500 A current and water(3)
