Fabrication of the PHENIX MMS has started at Mitsubishi Electric Corporation (Melco) Kobe Works, Japan on September 1996. Following photo received from Melco on 25 December 1996.

Machining of the piston core completed with primer paintings

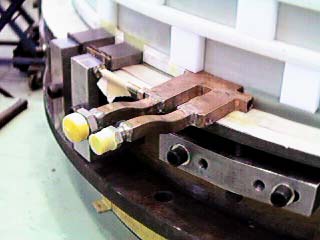

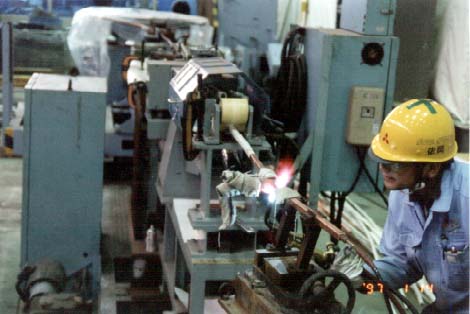

Start of the winding of the rear coil

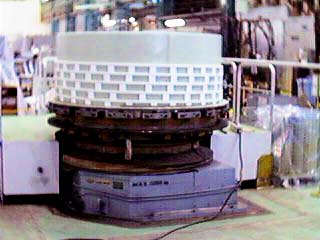

End of the winding of the rear coil

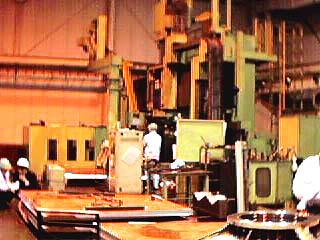

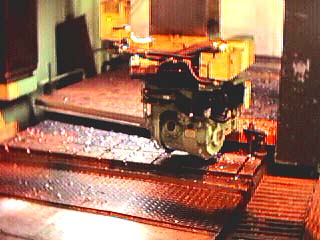

Machining of the upper Lampshade pannel in progress (1/2)
Machining of the upper Lampshade pannel in progress (2/2)

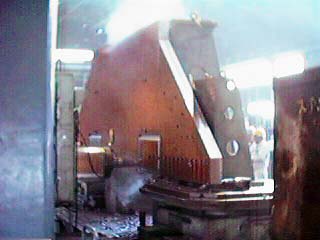

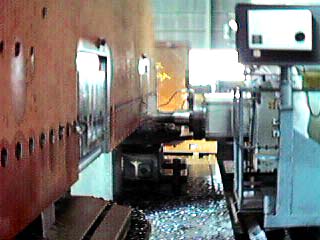

Machining of the Lower plate in progress (1/2)
Machining of the Lower plate in progress (1/2)

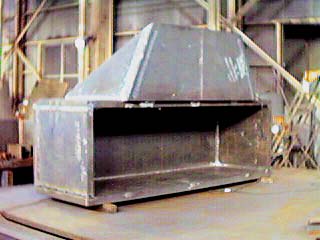

Welding of the Middle block completed. Before painting primer

Pre-inspecton at Melco Kobe works on 14 Jan. 1997. RIKEN side Attendadance : T. Ichihara (RIKEN), Ken Imai (Univ. of Kyoto)

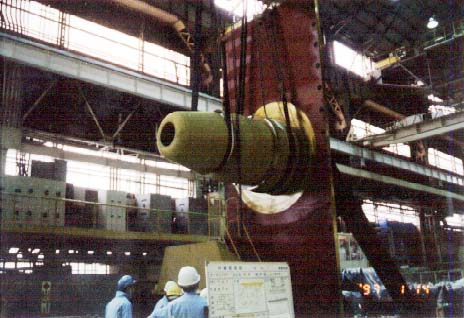

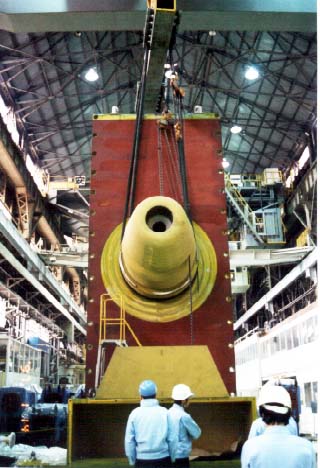

Piston core temporay equiped on the central backplate-1
Piston core temporaly equiped on the central backplate-2

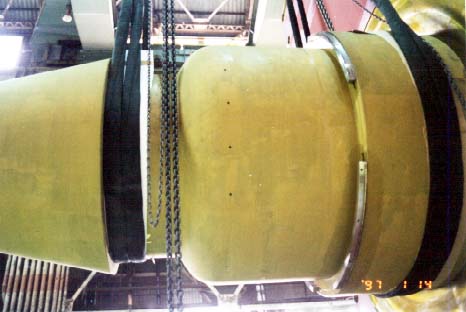

Piston core (side view)

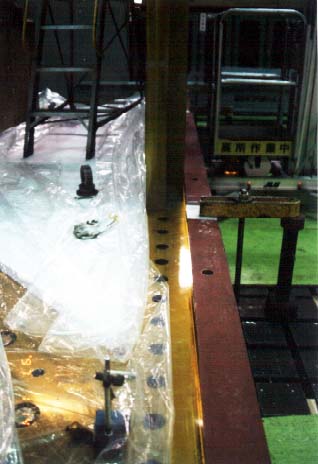

Central Back plate on the flor plate

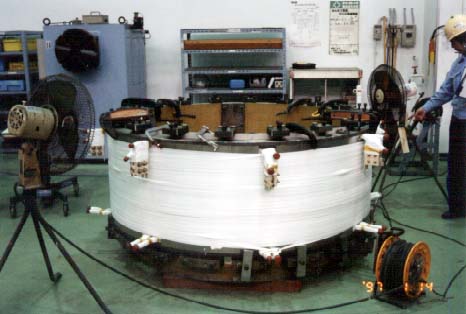

Rear Coil (almost done) f

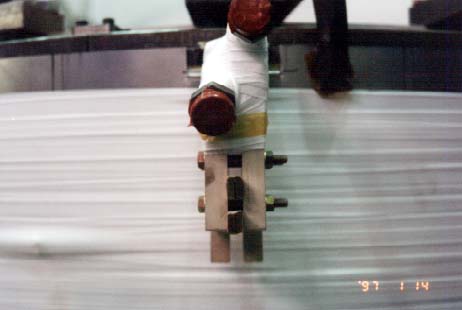

Rear Coil Bus flag (less than 5 cm widthness) f
Front Coil (just stated )
