SAMURAI
 |
 |
 |
 |
 |
 |
||||
Configuration
Please visit SAMURAI collaboration page to get the latest information.

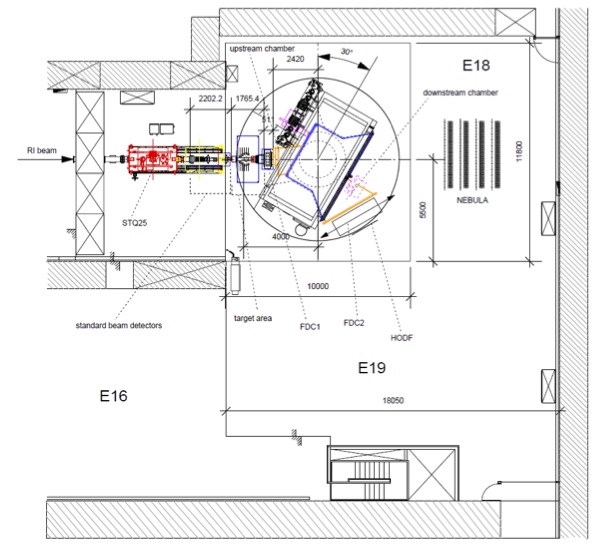

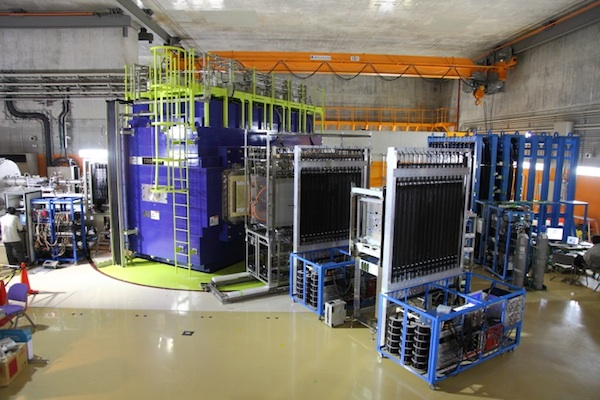

SAMURAI experimental hall
RIBF Build. B2F E18, E19 (E16 for preparation)
 |
| Open Large Image [PDF] |

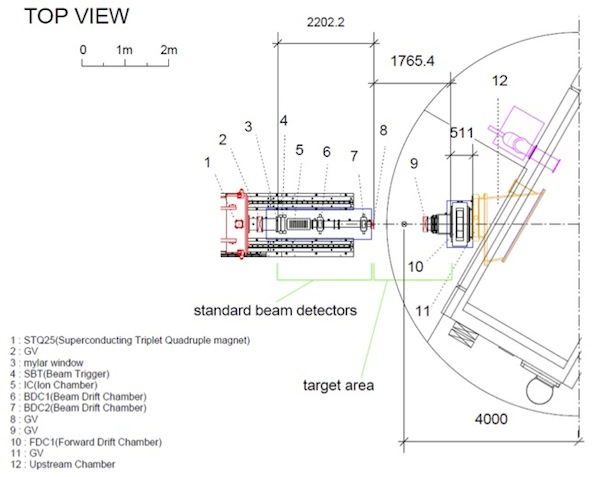

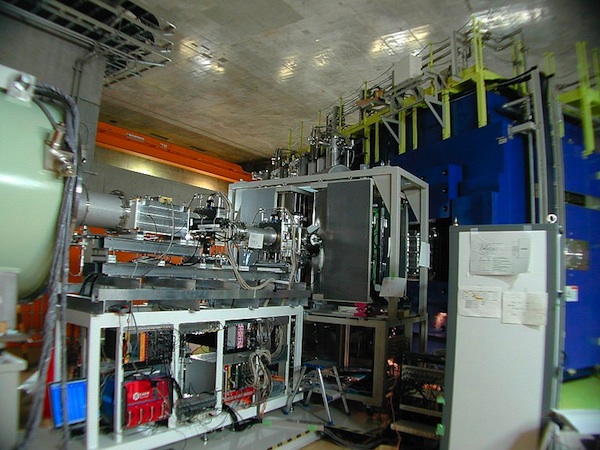

Standard configuration at upstream of the magnet
 |
| Open Large Image [PDF] |

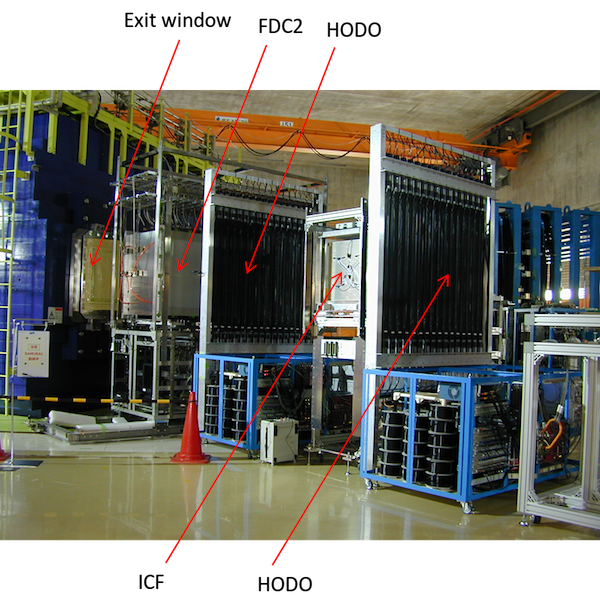

Standard configuration at downstream of the magnet

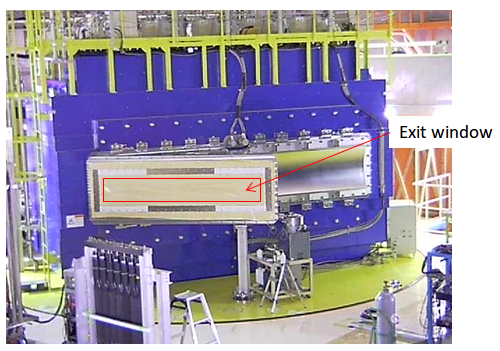

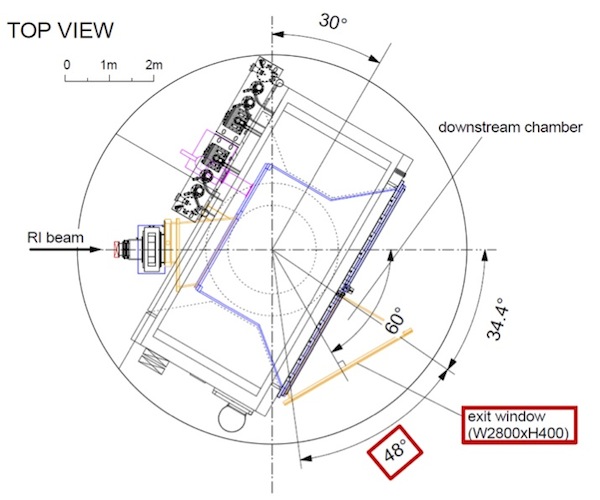

Opening angle of the exit window on downstream chamber
 |
| Open Large Image [PDF] |
- This is a current configuration (May 2012). SAMURAI magnet is rotated 30 deg.
- The development of the exit window is going on towards getting a height of 800 mm.

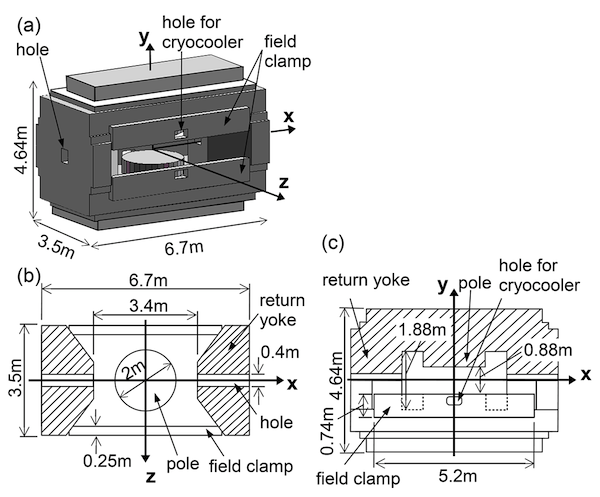

Superconducting dipole magnet
|
value |
|---|---|
Type |
H-type, Superconducting coil |
Pole shape |
circular |
Pole diameter |
2 m |
Pole gap |
0.88 m (0.8 m in vacuum chamber) |
Yoke width |
6.7 m |
Yoke depth |
3.5 m |
Yoke height |
4.64 m |
|
value |
|---|---|
Maximum current |
563 A |
Maximum magnetic field |
3.08 T |
Field integral along beam axis |
7.0 Tm @ 3.08 T |
Current density |
66.74 A/mm2 @ 563 A |
Maximum stored energy |
27.4 MJ @ 563 A |
